JET

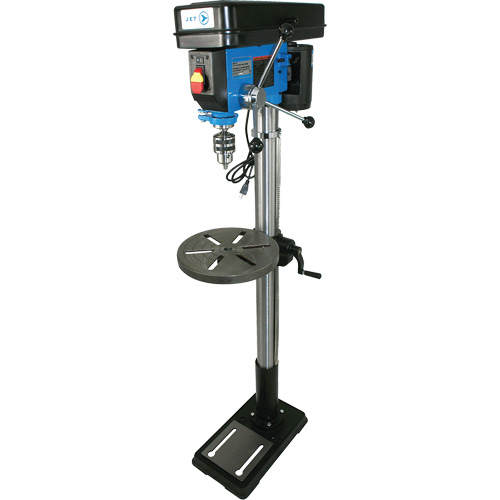

JDP-13F Floor Drill Press, 13-1/4", 5/8" Chuck, 3000 RPM

Model: TDW260

Mfr. No.: 200275

  • JDP-13F Floor Drill Press, 13-1/4", 5/8" Chuck, 3000 RPM M & M Nord Ouest Inc

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,158.00 / Each

0 In Stock

Swing

13-1/4"

Chuck Size

5/8"

No Load Speed

3000 RPM

Table Dimensions

10" W x 16-1/2" L x 61-5/8" H

Overall Width

10"

Overall Length

16-1/2"

Overall Height

61-5/8"

Horsepower

3/4 HP

Voltage

115/230 V

Amperage

5.2/2.6 A

Column Diameter

2-7/8"

Number Of Spindle Speeds

12

Spindle Taper

MT2

Spindle To Table Distance

31-1/2"

Spindle Travel

3-1/8"

Table Size

11-3/8" Diameter

Country Of Origin

China

  • Safety on/off switch with removable lock-out key
  • Worktable with quick-release clamp rotates and tilts to 45 deg right and left
  • Fully hinged belt and pulley cover and fully adjustable motor mount permit fast changes of spindle speed
  • Built-in work lamp with separate switch (bulb not included)
  • 12-speed capability allows for a broad assortment of drilling applications
  • Positive depth setting mechanism uses a threaded rod and two locknuts for accuracy
  • Slots in worktable permit easy clamping of the workpiece
  • Drill chuck and key standard equipment
  • Powerful 3/4 horse power motor
